Goal Zero Guide 10 Plus Solar Kit
Solar Kit

Goal Zero Guide 10 Plus Solar Kit

  • Vendor:Goal Zero
  • Category: Latest Products, Portable Solar
Availability: In Stock
$119.95
or
Wishlist Compare

Goal Zero Guide 10 Plus Solar Kit

space

Re-engineered to be lighter and smarter, the Nomad 7 Plus Solar Panel connects to the Guide 10 Plus to charge AAs from the sun. The rechargeable battery pack can also be used to power your phone, wearables, GPS, or boost your tablet in a pinch.

space

Guide 10 Plus Highlights

  • 2,300mAh Battery Pack
    Portable, rechargeable battery pack for power hungry gear. Includes a USB output for charging phones and boosting tablets.

  • Removable, Rechargeable Batteries
    Use AAs for headlamps, flashlight, and remotes. Also works with other rechargeable NiMH batteries and includes AAA adapter.

  • Light It Up
    Includes a built-in flashlight, handy for digging in any purse or backpack, and lighting up a hallway in a pinch.

Goal Zero Guide 10 Plus Solar Kit

space

Goal Zero Guide 10 Plus Solar Kit

Nomad 7 Plus Highlights

  • Smart Charging for Phones
    The Nomad 7 Plus features an auto restart that’s smarter than anything else on the market. With the ability to track power flow history, it knows the difference between a device that has reached a fully charged state and one that disconnects due to environmental causes, i.e. lack of sunlight, shadow, solar eclipse, etc. When the latter is detected, it automatically reconnects the charging device, no extra work on your part is needed.

  • Rugged and Modular
    Detachable kickstand provides optimum angle placement, natural shade for charging devices and a vented pocket for temperature regulation. Weatherproof layering easily sloughs rain and snow.

  • Junction Box + Solar Intensity Indicator
    Several key components work together to ensure you have the best solar charging experience, including the Solar Intensity Indicator. These 4 LED lights are indicative of current solar conditions and give you an idea of how well your gear will charge.

space

What It Charges

The Guide 10 Plus is perfect for all your smaller USB or AA/AAA powered gear and with the addition of the Nomad 7 Plus solar panel you get a complete kit to keep your stuff powered up even while you only have the sun as a power source.

  • Smartphone 50-100% Boost
  • POV Camera 1-2 Recharges
  • Headlamp 1-3 Recharges
  • Tablet 25% Boost

Goal Zero Guide 10 Plus Solar Kit

space

Goal Zero Guide 10 Plus Solar Kit

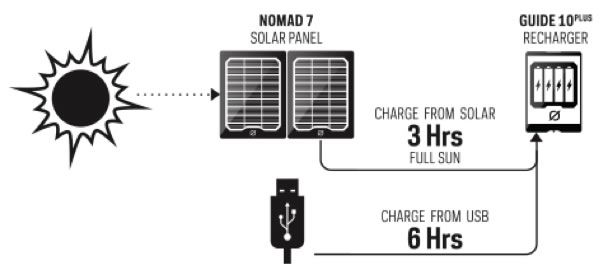

Two Ways to Charge The Guide 10 Plus

  • Recharge the Guide 10 Plus from the Nomad 7 Solar Panel in about 3-6 sun hours. Charge time varies due to location and proximity of the sun to the panel and weather.

  • Charge up from a USB power source in about 6 Hours.

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

space

Charge Times

Guide 10 Plus

USB Source: 6-10 hours
Nomad 7 Solar Panel: 3-6 hours
Nomad 7 Plus Solar Panel: 3-6 hours
Nomad 13 Solar Panel: 2.5-5 hours
Nomad 14 Plus Solar Panel: 6 hours
Nomad 14 Plus Solar Panel: 6 hours



Battery Details

Battery Type: NiMH
Battery Size: 11Wh (4.8V, 2300mAh)
Lifecycles: 500 cycles
Shelf-life: Keep plugged in or charge every 3-6 months
Fuses: none
Management system: Charging and low-battery protection built-in



Ports

USB port (output): 5V, up to 1A (5W max), regulated
USB Port (input): 5V, up to 0.8A (4W max), regulated
Mini solar port (input): 6.5V, up to 1.1A



General

Product SKU: 21005
Chainable: No
Weight (w/batteries): 6.4oz (181g)
Dimensions: 2.5 x 4 x 0.75 in (6.4 x 10.2 x 1.9 cm)
Operating usage temp.: 32-104 F (0-40 C)



Nomad 7 Plus Solar Panel

Charge Times

Switch 10: 4-6 hours
Flip 10: 2.5-5 hours Hours
Guide 10: 3-6 hours
Flip 20: 5-10 hours
Venture 30: 8-16 hours



Ports

USB Port: 5V, up to 1A (5W max), regulated
Solar Port (blue, 8mm): 15V, up to 0.3A (5W max), regulated
2.5mm (super, guide 10 charge port): 8-9V, up to 0.8A (800mA) (7W max) 6.5V, up to 1.1A (7W max)



Solar Panel

Rated Power: 7W
Open Circuit Voltage Voc: 8-9V
Cell Type: Monocrystalline



General

Product SKU: 11806
Weight w/Kickstand: 17.0 oz (482 g)
Weight Without Kickstand: 12.5 oz (354 g)
Dimensions (unfolded): 13 x 8.75 x 0.5 in (33 x 22.23 x 1.27 cm)
Dimensions (folded): 6.5 x 8.75 x 0.75 in (16.5 x 22.23 x 1.9 cm)
Max Leg Angle: 90 degrees

What batteries can be used in the Guide 10 Plus?
Any AA or AAA* NiMH batteries can be used and recharged. We do not recommend other types of batteries. 4 same-sized batteries MUST be charged at once, but not all batteries need to be empty. *AAA cells are sold separately and come with an adapter to use with the Guide 10 Plus.

How do I charge the Guide 10 Plus?

From Solar: Use Goal Zero Nomad 3.5 or Nomad 7 with solar charge cable for fast charging.

From USB: Use any USB power source, such as a computer or any Goal Zero power pack.

Is the Guide 10 Plus waterproof?
No, but it is weather-resistant. Care should be taken to shield if from direct sunlight and the elements. Unexpected rain storms probably won’t harm it.

How is the Guide 10 Plus protected?
Usage is plug-and-play. The built-in battery management system prevents over-charging and over-discharging of batteries. The USB output will only supply the amount of power needed.

Does the Nomad 7 Solar Panel hold a charge?
No, the panel produces power only when exposed to sunlight. To generate the most power, angle the panel toward the sun. This improves your ability to collect power from the sun. Clouds and windows affect collection efficiency. If you would like to store power, combine the Nomad 7 with a Goal Zero recharger.

What can I charge directly from the Nomad 7 Solar Panel?
USB and 12V devices like cellphones, GPS and iPods. You can plug in a 12V device and USB device at the same time, however, you will slow down the charge time for both devices.

Is the Nomad 7 Solar Panel waterproof?
It is very weather-resistant and will not be harmed if exposed to rain or snow.

What am I having trouble charging by cellphone from the Nomad 7 Solar Panel?
Some phones require very specific and constant power. Try changing the angle of your panel and re-plugging in your phone. Most charging issues are overcome by incorporating a Goal Zero portable recharger.

Can I chain multiple solar panels together?
Yes. Chaining additional solar panels is a great way to charge your device from the sun in less time. You can chain up to four solar panels at once.

Goal Zero Guide 10 Plus Solar Kit User Guide
User Guide

Charge Times

Nomad 7 Nomad 13 Nomad 20
Switch 8 4-8 Hours 4 Hours 4 Hours
Flip 10 2.5-5 Hours 2.5 Hours 2.5 Hours
Switch 10 4-8 Hours 4 Hours 4 Hours
Guide 10 Plus 3-6 Hours 2.5-5 Hours 2.5-5 Hours
Venture 30 8-16 Hours 6-12 Hours 5-6 Hours
Sherpa 50 Not Recommended 8-16 Hours 6-12 Hours
Sherpa 100 Not Recommended 15-30 Hours 10-20 Hours
Escape 150 Not Recommended 26-52 Hours 17-34 Hours
Yeti 150 Not Recommended 26-52 Hours 17-34 Hours
Yeti 400 Not Recommended Not Recommended 40-80 Hours
Yeti 1250 Not Recommended Not Recommended Not Recommended



Charge Times

Boulder 15 Boulder 30
Escape 30
Boulder 90
Switch 8 Not Compatible Not Compatible Not Compatible
Flip 10 2.5 Hours Not Compatible Not Compatible
Switch 10 4 Hours Not Compatible Not Compatible
Guide 10 Plus Not Compatible Not Compatible Not Compatible
Venture 30 7-15 Hours Not Compatible Not Compatible
Sherpa 50 8-16 Hours 4-8 Hours 1-3 Hours
Sherpa 100 13-26 Hours 7-14 Hours 3-6 Hours
Escape 150 22-44 Hours 11-22 Hours Not Compatible
Yeti 150 22-44 Hours 11-22 Hours 3-6 Hours
Yeti 400 53-106 Hours 26-52 Hours 9-18 Hours
Yeti 1250 Not Recommended 80-160 Hours 27-54 Hours
  • Guide 10 Plus Power Pack
  • 4 AA Rechargeable Batteries
  • AAA Adapter
  • USB cord
  • Nomad 7 Plus Solar Panel
  • Removable Kickstand/Zippered Pouch

Goal Zero Guide 10 Plus Solar Kit
