Goal Zero Yeti 150 & Nomad 14 Plus Solar Kit
The Yeti 150 & Nomad 14 Plus Solar Kit is a plug-and-play, silent, fume-free power station and solar panel combo for short outages, garages, events, or wherever you need portable power. The Goal Zero Yeti 150 Portable Power Station is a gas-free source of portable power to keep lights, phones and laptops powered on through any situation. Also, the Nomad 14 Plus is a 14-Watt panel re-engineered to be lighter and smarter, it has the innovative technology to charge USB devices directly from the sun. Detachable kickstand for modularity and power-flow indicator ensure the best solar charging experience.
Yeti 150 & Nomad 14 Plus Solar Kit Features
- Waterproof and Modular Rugged, waterproof construction means power without worry. Removable kickstand provides optimum angle placement toward the sun.
- Auto Restart The Nomad 14 Plus features an auto restart that’s smarter than anything else on the market. With the ability to track power flow history, the Nomad 14 Plus knows the difference between a device that has reached a fully charged state and one that disconnects due to environmental causes, i.e. lack of sunlight, shadow, etc. When the latter is detected, the Nomad 14 Plus will automatically reconnect the charging device, no extra work on your part is needed.
- Smart Charging for Phones and Tablets Features a dynamic auto-restart and smart electronics to charge phones, tablets and other USB-powered gear directly from the sun, even in cloudy conditions.

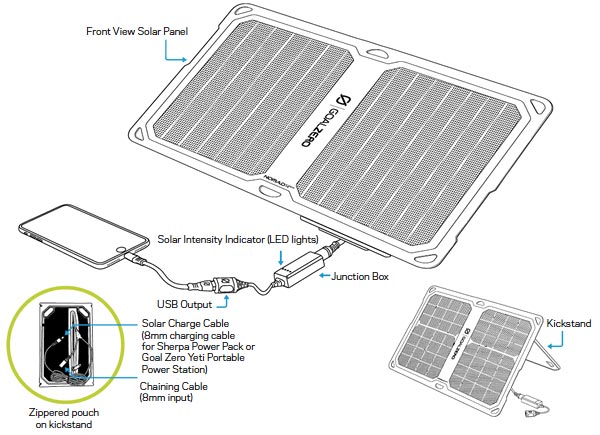

- Solar Intensity Indicator + Junction Box Take the guess work out of charging from the sun. Easy-to-read LED indicator display strength of solar conditions and provides immediate feedback on the speed of charging.
Yeti 150 & Nomad 14 Plus Solar Kit Powering
There Are Three Ways to Charge Your Yeti 150
The Goal Zero Yeti 150 can be charged by being plugged into a regular wall outlet in about 6 Hours.
The Goal Zero Yeti 150 can also be charged by plugging into your car 12V adapter in about 8 Hours.
Yeti 150 Tech Specs
|Wall Charger (45W): 6 hours|
|Car Charger (30W): 8 hours|
|Nomad 13 Solar Panel: 26-52 Hours|
|Nomad 20 Solar Panel: 17-34 Hours|
|Nomad 20 Solar Panel: 22-44 Hours|
|Cell Type: AGM Lead-Acid|
|Peak Capacity: 168Wh (12V, 14Ah)|
|Lifecycles: hundreds of cycles|
|Shelf-life: Keep plugged in, or charge every 3-6 months|
|Internal Battery Dimensions: 6.0in L x 3.8in W x 3.7 H|
|Fuses: 20A, user replaceable fuse|
|Management system: Charging and low-battery protection built-in|
|USB port (output): 5V, up to 2.1A (10W max), regulated|
|6mm port (output, 6mm, green, hexagon): 12V, up to 10A (120W max), regulated|
|12V car port (output): 12V, up to 10A (120W max)|
|AC inverter US (output, 60Hx, modified sine wave): 110V, 0.7A (80W continuous, 160W surge max)|
|Charging port (input, 8mm, blue, circle): 14-29V, up to 5A (60W max)|
|Weight: 12 lbs (5.4 kg)|
|Dimensions: 7.75 x 5.75 x 6.75 in (19.7 x 14.6 x 17.2 cm)|
|Operating usage temp.: 32-104 F (0-40 C)|
Nomad 14 Plus Solar Panel Tech Specs
Charges the Following
|Goal Zero Switch 10/Flip 10: 2.5-3 Hours|
|Flip 20: 4-5 Hours|
|Flip 30: 5-8 Hours|
|Venture 30: 5-8 Hours|
|Sherpa 50: 7-14 Hours|
|Sherpa 100: 14-28 Hours|
|USB Port: 5V, up to 2.4 A (12W max)|
|Solar Port (8.0mm): 14-22V, up to 1A (14W max)|
|Rated Power: 14W|
|Open Circuit Voltage: 18-22V|
|Cell Type: Monocystalline|
|Weight with Kickstand: 1.9 lbs (862 g)|
|Weight without Kickstand: 1.4 lbs (635 g)|
|Dimensions (unfolded): 12.1 x 15.8 x 0.1 in (31 x 40 x 0.2 cm)|
|Dimensions (folded): 12.1 x 7.8 x 0.5 in (31 x 20 x 1.3 cm)|
|Max Leg Angle: 90 degrees|
|Nomad 7||Nomad 13||Nomad 20|
|Switch 8||4-8 Hours||4 Hours||4 Hours|
|Flip 10||2.5-5 Hours||2.5 Hours||2.5 Hours|
|Switch 10||4-8 Hours||4 Hours||4 Hours|
|Guide 10 Plus||3-6 Hours||2.5-5 Hours||2.5-5 Hours|
|Venture 30||8-16 Hours||6-12 Hours||5-6 Hours|
|Sherpa 50||Not Recommended||8-16 Hours||6-12 Hours|
|Sherpa 100||Not Recommended||15-30 Hours||10-20 Hours|
|Escape 150||Not Recommended||26-52 Hours||17-34 Hours|
|Yeti 150||Not Recommended||26-52 Hours||17-34 Hours|
|Yeti 400||Not Recommended||Not Recommended||40-80 Hours|
|Yeti 1250||Not Recommended||Not Recommended||Not Recommended|
|Boulder 15||Boulder 30
|Switch 8||Not Compatible||Not Compatible||Not Compatible|
|Flip 10||2.5 Hours||Not Compatible||Not Compatible|
|Switch 10||4 Hours||Not Compatible||Not Compatible|
|Guide 10 Plus||Not Compatible||Not Compatible||Not Compatible|
|Venture 30||7-15 Hours||Not Compatible||Not Compatible|
|Sherpa 50||8-16 Hours||4-8 Hours||1-3 Hours|
|Sherpa 100||13-26 Hours||7-14 Hours||3-6 Hours|
|Escape 150||22-44 Hours||11-22 Hours||Not Compatible|
|Yeti 150||22-44 Hours||11-22 Hours||3-6 Hours|
|Yeti 400||53-106 Hours||26-52 Hours||9-18 Hours|
|Yeti 1250||Not Recommended||80-160 Hours||27-54 Hours|
Is the Nomad 14 Plus Solar Panel Waterproof?
Yes. Goal Zero has gone to great lengths to ruggedize the Nomad 14 Plus; including beefing up the manufacturing process with advanced lamination techniques so it’ll slough off rain and snow. However, if the junction box gets soaking wet, it is recommended to let it dry out before plugging in.
Does the Nomad 14 Plus have a built-in battery?
No. Goal Zero made the Nomad 14 Plus to be as modular and lightweight as possible, that meant selling batteries as an optional accessory. You can either plug your phone or device directly into the Nomad 14 Plus, or pair it with one of Goal Zero’s rechargers to store power for later (like at night when you go inside). A Goal Zero Venture Recharger or Sherpa Power Pack with the Nomad 14 Plus is recommended.
Is this chainable with other Nomad panels?
Yes, but only on some Goal Zero Nomad Solar Panels. You can plug the Charge Cable into the chaining ports on older Nomad Solar Panels. The Nomad 14 Plus cannot be chained with the Nomad 7 Plus or Nomad 7 Solar Panels.
How does the Solar Intensity Indicator work?
Science. Goal Zero’s engineers developed patent-pending electronic brains for the Nomad 14 Plus that ensures you have the best solar charging experience possible. Part of the electronics include an advanced current sensor (way better than a voltmeter) and unique maximum power point tracking (MPPT) charge controller to optimize the USB output. What you need to know is when conditions are right, you can plug a phone into the Nomad 14 Plus and charge it directly from the sun. You’ll know the conditions are right by checking out the Solar Intensity Indicator.
