Intellian t80W/t80Q Satellite TV Intell-t80W/t80Q

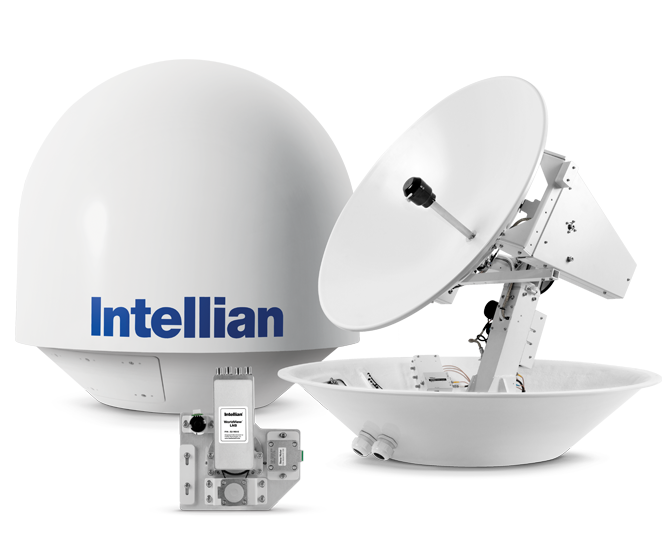

The Intellian t80W/t80Q Satellite TV Intell-t80W/t80Q is a 85cm (33.5in) Marine Stabilized Ku-Band Global Satellite TV System that brings the convenience of at-home television to boaters at sea.
Intellian t80W/t80Q Satellite TV Intell-t80W/t80Q Highlights
- WorldView LNB for global operation with any satellite TV provider
- Universal Quad LNB for European Market
- Travel further north or south with the extended elevation range of -15° to 110°
- Automatic satellite switching from your remote control
- Built-in HD module for Ku-band
- 12° per second turn rate and high-speed 3-axis stabilization platform ensures signal lock at high speeds and in rough seas
- Global Satellite library for simple setup and easy regional switching
- Simplicity of design, no external compass or rate sensors required
space
Outstanding Performance Anywhere
Intellian’s t80W provides outstanding performance in an 85cm (33.5in) reflector with the added benefits of Intellian’s proprietary WorldView technology. This system receives SD or HD programming from any Ku-band satellite TV service around the globe without requiring LNB changes or re-wiring of the system when the vessel travels from one region to another.
Fully Integrated Solution
For those managing larger fleets, the Intellian t80W/t80Q can be networked with any onboard, Intellian-built satellite communications system (VSAT or FleetBroadband) to allow remote access and management via Aptus Web no matter where the vessel is located around the globe.
With its Wi-Fi capable ACU, users can connect wirelessly to the Intellian t80W/t80Q Satellite TV Intell-t80W/t80Q using Aptus PC or Aptus Mobile, an iOS Mobile Application available for free download through the App Store. Aptus offers users instant diagnostics, performance logging functions, and one-touch updates to the antenna’s firmware and the Global Satellite Library, ensuring the antenna delivers peak performance at all times.
space
Unrivaled Satellite Performance at Sea
It’s not easy finding a satellite that’s 22,000 miles away, but thanks to Intellian’s Wide Range Search technology, our antennas search over a wider range and lock onto a signal in seconds – four to five times faster than conventional antennas.
Holding on to that signal while underway or when the boat moves is another reason to choose Intellian. Our patented Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to maintain the strongest signal even when the vessel is cruising at high speeds or in rough weather. It also reduces the need for constant dish adjustment, reducing overall wear and tear on the antenna.
Intellian t80W/t80Q Features
WorldView Capable
- The WorldView™ LNB offers the clearest, most reliable global TV reception for guests or crew to tune in any channels on any satellite seamlessly throughout the voyage
- Receives circularly polarized programming from the Americas or linear polarization for the rest of the world
- Universal Quad LNB models receives linear polarization for Europe, Middle East, Africa and some Asia countries
Remote Management & Control
- Remotely accessible via the Aptus platform
- Perform firmware upgrades, monitor tracking parameters, log performance data and run system diagnostics from anywhere in the world
Wi-Fi Enabled Antenna Control Unit
- Wireless updates and diagnostics via the Aptus PC
- Intuitive controls and digital satellite information display on the ACU
- Simple antenna status quick reference
Digital Video Broadcasting Signal Identification
- High-Speed Identification employing a DVB-S2 decoder
- QPSK Demodulator Lock for DSS signal
Multiple Receiver connections
- Supports multiple receivers through a Multi-Switch or using the Intellian MIM
- Using the Intellian MIM a master receiver can be selected to control the target satellite
iQ²: Quick&Quiet℠ Technology
- iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
- The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
- Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas
Quattro Switching Module Pre-installed
- Embedded Quattro Switching Module, which intelligently distributes different tone signals to the correct ports on any legacy multi-switches installed throughout the ship
- No need for reconfiguring anything below deck apart from the ACU
Built-in GPS, NMEA Interface, Heading Interface
- The Intellian t80W/t80Q includes a built-in GPS inside of the antenna unit for faster signal acquisition and can interface with onboard heading sensors
- The ship’s GPS can also be connected through the NMEA 0183/2000 ports on the rear panel of the ACU
Three Year Global Warranty
- Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
- The new warranty policy (3-year parts and 2-year labor) is only valid for products purchased after 1st, January 2017
space
Product Models
| 3-axis Ku-band Satellite TV Antenna system | Intellian t80W |
Physical
| Radome Height | 114 cm (44.9 inch) |
| Radome Diameter | 113 cm (44.5 inch) |
| Reflector Diameter | 85 cm (34 inch) |
| Weight | 82.2 kg (181.2 lbs) |
Environmental
| Operating Temp. Range | -25°C ~ 55°C (-13°F ~ 131°F) |
| Storage Temp. Range | -40°C ~ 80°C (-40°F ~ 176°F) |
| Water Ingress | IPX6 |
| Approvals | CE / FCC |
| Warranty | 3 Years Parts and 2 Year Labor |
Performance
| Reception Frequency | Ka-band ： 18.3 ~ 18.8 GHz, 19.7~20.2GHz, Ku-band ： 10.7 ~ 12.75 GHz |
| Minimum EIRP | Ka-band ： Circular, Ku-band ： Linear / Circular Switchable |
| Azimuth Range | 42dBW |
| Elevation Range | 680° |
| Roll/Pitch/Yaw | -15° ~ 120° |
| Turn Rate | ±37° |
| RF Output | 3-axis ： Azimuth / Elevation / Cross-level. Auto Skew |
Antenna Control Unit
| Dimensions (W × D × H) | 43cm × 29.6cm × 4.4 cm (17 inch × 11.6 inch × 1.7 inch) |
| Weight | 3.2 kg (7.1 lbs) |
| Display | 2 line 40 character VFD module |
| GPS Interface | Built-in (NMEA 0183 GPS) |
| Gyrocompass Interface | NMEA 0183 / 2000 |
| Power Requirement | 100~240V AC, 50~60 Hz, 2A |
| Power Consumption | Typ. 50W, Max 100W |
LNB LO Frequencies
| Local Oscillator Frequency | Polarization / Area |
| 11.250 GHz | Dual Circular / North America, Russia |
| 10.500 GHz | Dual Circular / Latin America |
| 10.750 GHz | Single Circular / Korea |
| 10.750 GHz | Dual Circular / China |
| 10.678 GHz | Single Circular / Japan |
| 11.300 GHz | Dual Linear / South East Asia |
| 10.700 GHz | Dual Linear / Australia |
| Universal (Low 9.75GHz, High 10.6GHz) | Quad Linear / Europe, Middle East, Africa, Some Asia countries |
Datasheet
| MODEL | t80W/t80Q | t100W/t100Q |
t110W/t110Q |
t130W/t130Q |
t240CK |
| Antenna Dish Size | 85 cm (33.5 inch) | 105 cm (41.3 inch) | 105 cm (41.3 inch) | 125 cm (49.2 inch) | 240 cm (94 inch) |
| Radome Dimension(WxH) | 113x121 cm (44.5x47.5 inch) | 138.0x151.4 (54.3x59.6 inch) | 133x142 cm (52.4x55.9 inch) | 169x165 (66.5x65 inch) | 330x353 cm (130x139 inch) |
| Antenna Weight | 83.4 kg (184 lbs) | 91 kg (201 lbs) | 91 kg (201 lbs) | 117 kg (258 lbs) | 63 kg (1389 lbs) |
| Minimum EIRP | 44 dBW | 42 dBW | 42 dBW | 40 dBW | 31 dBW |
| Automatic Skew Control | Yes | Yes | Yes | Yes | Yes |
| Antenna Control Unit | Yes | Yes | Yes | Yes | Yes |
| Built-in HDTV Module | Yes | Yes | Yes | Yes | Yes |
| Built-in Trisat Function | Yes | Yes | Yes | Yes | Yes |
| Built-in GPS System | Yes | Yes | Yes | Yes | Yes |
| GPS Interface | Yes | Yes | Yes | Yes | Yes |
