Simrad R2009 and 4G Radome Kit
Radar System

Simrad R2009 and 4G Radome Kit

  • Vendor:Simrad
  • Category: Latest Products, Maritime, Radar Systems
Availability: Out Stock
$3,199.00
or
Sold Out

Simrad R2009 and 4G Radome Kit

The Simrad R2009 and 4G Radome Kit comes paired with a 4G Broadband radome, featuring extremely low transmitter radiation, superior close-in target definition, and low power consumption. The 4G radome also features Beam Sharpening, which provides increased target separation for an easier to interpret presentation.

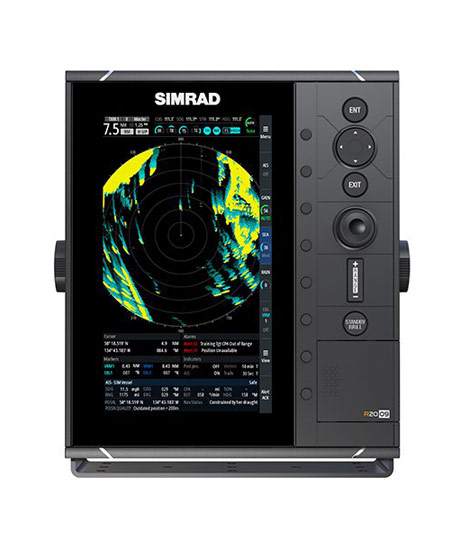

Dedicated Radar Control Display

The Simrad R2009 radar control unit offers a professional-grade interface to Simrad Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital radar solutions.

Designed to match the modern styling of Simrad glass bridge displays and instruments, this dedicated radar display is a perfect complement to your NSS evo2 or NSO evo2 multifunction display system.

Maximize your radar’s utility by adding its own dedicated screen and controls, without compromising on a clean and consistent helm design.

  • Dedicated radar control unit
  • Compatible with Simrad Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital Radar systems
  • Automatic tuning system
  • Anti-sea-clutter technology for an optimum picture under adverse weather conditions
  • MARPA target tracking
  • 9-inch portrait display
  • High brightness for outside use
  • Keypad and rotary-dial interface with 8 direct-access menu keys
  • Bracket and flush-mount installation options
  • Ethernet, NMEA0183 & NMEA2000 connectivity

space

space

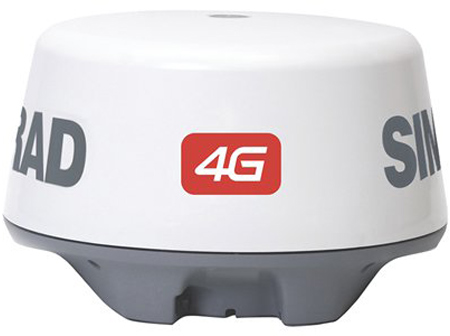

Revolutionary 4G Broadband Radar

This FMCW radar has all of the benefits of Simrad’s revolutionary Broadband 3G™ Radar but with more advanced features, including beam sharpening for target separation control, Dual Range radar (NSE & NSO) and increased target detection capabilities.

  • Beam Sharpening
  • 0-36nm Range
  • Dual Range when used with NSE/NSO
  • High Speed Mode
  • Advanced Target Detection
  • Crystal Clear Image
  • Automatic Clarity
  • MARPA Target Tracking
  • Dual Guard Zones
  • InstantOn™
  • Low Power Consumption
  • Zero Radiation Hazard
  • Quick Installation
  • Ethernet Connectivity

space

space

space

Weight 30 lbs
Dimensions 32 x 24 x 32 in
Brands

Simrad R2009 Tech Specs

Technical/Environmental

Product Height
260.1 mm / 10.24 in
Product Weight
1.95 kg / 4.3 lb
Operating Temperature
-15°C to +55°C / 5°F to 131°F
Product Width
224.3 mm / 8.83 in
Product Depth
82.3 mm / 3.24 in
Water Resistance
IPX7
Specified Standards
CE, RTCM SC112 Radar for non-IMO vessels, IEC62252 European small craft radar Class B (Pending Approval)



Overview

Screen Brightness
≥1200cd/m2
Languages
40 languages



Power

Power Consumption
11 W
Power Supply (Supply Voltage)
12-24 V DC



Display

Display Resolution [pixels x pixels]
480 x 800
Display Size
9-inch portrait
Display Type
9-inch LED-backlit Colour TFT LCD



Simrad 4G Radome Tech Specs

Technical/Environmental

Product Height
280 mm / 11 in
Product Weight
7.4 kg / 16 lbs (no cable)
Operating Temperature
-25° to +55°C (-13° to +130°F)
Water Resistance
IPX6
Humidity
+35°C (95°F) 95% RH
Waterproof Standard/rating
IPX6



Overview

Description
High Performance Broadband Radome
Radar Antenna Width
19"
Radar Technology
Broadband FMCW
Radar Max Range
36nm
Radar Power Requirements
12v / 20 watt
Radar Features
MARPA, Guard Zones, InstantON, Dual Range*, High Speed*, Beam Sharpening*
*NSE and NSO only.



Power

Power Consumption
20W (Typ.) @ 13.8Vdc (21W in dual range mode) Standby:2.9W
Power Supply (Supply Voltage)
9V to 31.2Vdc (12/24 Volt systems) Reverse polarity protection Minimum startup voltage 10.8vDC



Radar

Antenna Horizontal Beam Width [deg]
5.2°+/-10% (-3dB width) ° (Beam width with target separation on MAX is 2.6°)
Antenna Receiver Noise Figure [dB]
6
Antenna Rotation Speed
24/36/48 rpm +/- 10% (mode and MFD model dependent)
Antenna Vertical Beam Width
25°+/-20% (-3dB width) °
Beam Width
Adjustable between 2.6° and 5.2° with target separation control (Simrad, B&G) , 2.6° (Lowrance)
Distance Range [nm]
36
Radar Wind Resistance
51 m/sec (Max:100 Knots)
Radar Warm Up Time [minutes]
0
