Simrad R3016 and HALO-6 Radar Kit
Radar System

Simrad R3016 and HALO-6 Radar Kit

  • Vendor:Simrad
  • Category: Latest Products, Maritime, Radar Systems
Availability: Out Stock
$7,999.00
or
Sold Out

Simrad R3016 and HALO-6 Radar Kit

The R3016 and HALO-6 Radar Kit comes paired with a HALO Pulse Compression Pedestal and 6′ open array antenna, featuring low transmitter radiation, superior target definition, and low power consumption. It also features Beam Sharpening, which provides increased target separation for an easier to interpret presentation. The R3016 is a full-featured radar control and display unit with a brilliant 16″ widescreen color LCD. It has a new, fresh user interface with eight direct-access menu keys and large buttons for reliable operation in all conditions.

R3016 and HALO-6 - bgStrip1

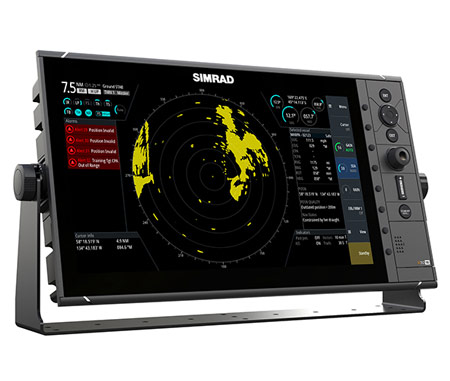

Dedicated Radar Control Display

The Simrad R3016 and HALO-6 Radar Kit comes with a dedicated radar control unit with an integrated 16-inch widescreen display that is compatible with a range of Simrad radar solutions including Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital Radar.

An ideal safety and navigation accessory for offshore cruisers and sportfishing vessels, the R3016 offers versatile flush or bracket-mount installation options and intuitive keypad based operation for reliable control in all conditions.

  • Dedicated radar control unit
  • Compatible with Simrad Halo™ Pulse Compression, Broadband 3G™/4G™, and HD Digital Radar systems
  • Automatic tuning system
  • Anti-sea-clutter technology for an optimum picture under adverse weather conditions
  • MARPA target tracking
  • 16-inch HD widescreen display
  • HDMI output for an optional secondary display or remotely-operated ‘clone’ station
  • Keypad and rotary-dial interface with 8 direct-access menu keys
  • Bracket and flush-mount installation options
  • Ethernet, NMEA0183 & NMEA2000 connectivity

space

space

space

space

space

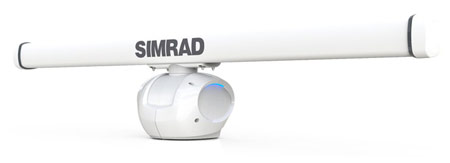

HALO-6 Radar

Combining the best characteristics of traditional pulse and FMCW broadband radar systems, our Halo™ Radar uses Pulse Compression technology to provide an unprecedented mix of long and short detection range, high target definition, and minimal clutter. Solid State technology means minimal warm-up time and maximum ocean-going reliability, while low-power pulsed transmissions make Halo Radar safe to run in anchorages and marinas.

  • True 72nm range with 6-foot open array antenna
  • Beam Sharpening with Target Separation Control
  • Dual Range operation
  • Advanced signal processing with Custom, Harbour, Offshore, Weather, and BIRD modes
  • High-speed 48RPM operation
  • InstantOn™, ready in 16-25 seconds from power-on, instant from standby
  • MARPA target tracking, up to 10 targets (20 with dual range)
  • Low electromagnetic emissions and radiation
  • Low power consumption with 12/24V operation
  • Ethernet connectivity
  • Unique blue LED accent lighting with brightness control
R3016 and HALO-6 - bgStrip2

space

space

space

space

space

space

space

Solid-State with Pulse Compression Technology

The Simrad R3016 and HALO-6 Radar Kit comes with the world’s first high performance, solid-state radar with pulse compression technology designed specifically for recreational mariners. It isn’t reliant on a high-powered vacuum tube to transmit. Instead, it uses solid-state electronics and low-power 25W pulsed, frequency-swept transmission bursts to deliver pulse radar-like range and resolution, without the associated warm-up time, power consumption, or electromagnetic emissions.

Dual Range Operation

With Dual Range, Halo Radar functions like two arrays in one – monitor two distance ranges simultaneously with independent displays, controls, and totally independent MARPA target tracking. Take full advantage of Halo Radar’s combination of short-, mid-, and long-range performance to keep an eye on faraway weather cells, while monitoring channel markers and high-speed watercraft up close.

space

72nm Range

Halo Radar delivers a maximum range comparable to traditional 6kW pulse radar, at up to 72nm with the HALO-6 Radar’s 6-foot open array antenna. It offers unprecedented 6m (20ft) minimum range, peering into that pulse-radar blind spot where once only FMCW (3G/4G) Broadband Radar could operate.

Beam Sharpening

Whether you’re looking at a flock of birds or a string of channel markers, separating one radar target from another is key. Beam Sharpening with Target Separation Control provides unmatched target resolution, granting the Halo Pulse Compression Radar’s 6-foot open array antenna the same effective target resolution as an 8-foot array without beam sharpening.

space

Weight 60 lbs
Dimensions 20 x 36 x 26 in
Brands

Simrad R3016 Tech Specs

Technical/Environmental

Product Height
260.1 mm / 10.24 in
Product Weight
4 kg / 8.8 lb
Operating Temperature
-15°C to +55°C / 5°F to 131°F
Product Width
455.5 mm / 17.93 in
Product Depth
82.3 mm / 3.24 in
Water Resistance
IPX6
Specified Standards
CE, RTCM SC112 Radar for non-IMO vessels, IEC62252 European small craft radar Class A (Pending Approval)



Overview

Screen Brightness
300cd/m2
Languages
40 languages



Power

Power Consumption
20 W
Power Supply (Supply Voltage)
12-24 V DC



Display

Display Resolution [pixels x pixels]
1366 x 768
Display Size
16-inch widescreen
Display Type
16-inch LED-backlit Colour TFT LCD



Simrad HALO-6 Tech Specs

Technical/Environmental

Product Length [mm]
Swing Cirlce: 1,980mm / 6.5’
Product Height
448mm
Product Weight
Unpacked System: 29.2kg/64.3lb±10%
Pedestal:18.75kg/41.5lb±10%
Antenna 6’: 6.5kg/14.3lb±10%
RI-12: 1.6kg/3.5lb±10%
20m (33ft) Cable: 2.3kg/5.0lb±10%
Operating Temperature
25° to +55°C
Water Resistance
IPX6
Humidity
+40°C, 93% RH
Specified Standards
FCC ID: RAYHALO
IC: 4697A-HALO
Emissions compliant to SM1541-4 (including -40dB/dec future design objectives)
Waterproof Standard/rating
IEC60945-4



Overview

Cable Length
20m (65ft). Optional 10m (33ft) cable
Radar Max Range
100m / 300ft to 48nm
Radar Technology
Solid-state X-Band transceiver with Pulse Compression technology
Radar Features
Peak Power Output: 25W ±10% under any transmit condition (up to 10% duty cycle max)
Radiation Safe Distance: 100W/m2 (Occupational) at 0m - touch anywhere; 10W m2 (Public) measured at .28m/.92ft. FCC CFR47 Part 2.1091 calculated public safe distance is 0.80m/2.6ft. (less than the swing circle of the antenna with either method).



Power

Power Consumption
150W (peak in 70kt winds), 40W (average with zero wind velocity), 6.5W (standby)
Power Supply (Supply Voltage)
10.8V – 31.2V DC (12/24 Volt DC systems)



Radar

Antenna Horizontal Beam Width [deg]
1.2° ±10% (-3dB width), 1.1/0.9/0.8° with Beam Sharpening mode enabled (Low/Med/High)
Antenna Receiver Noise Figure [dB]
5
Antenna Rotation Speed
Approx. 24-48RPM (min 20RPM at 70 knots)
Antenna Vertical Beam Width
25° +20% (-3dB width)
Radar Vibration
2-100Hz and 20G, 100,000 cycles
Antenna Type
Circulator and Isolator; Radar Mixer: MIC front-end

Simrad R3016 ManualR3016 Manual

Simrad HALO Radar BrochureHALO Radar Brochure
