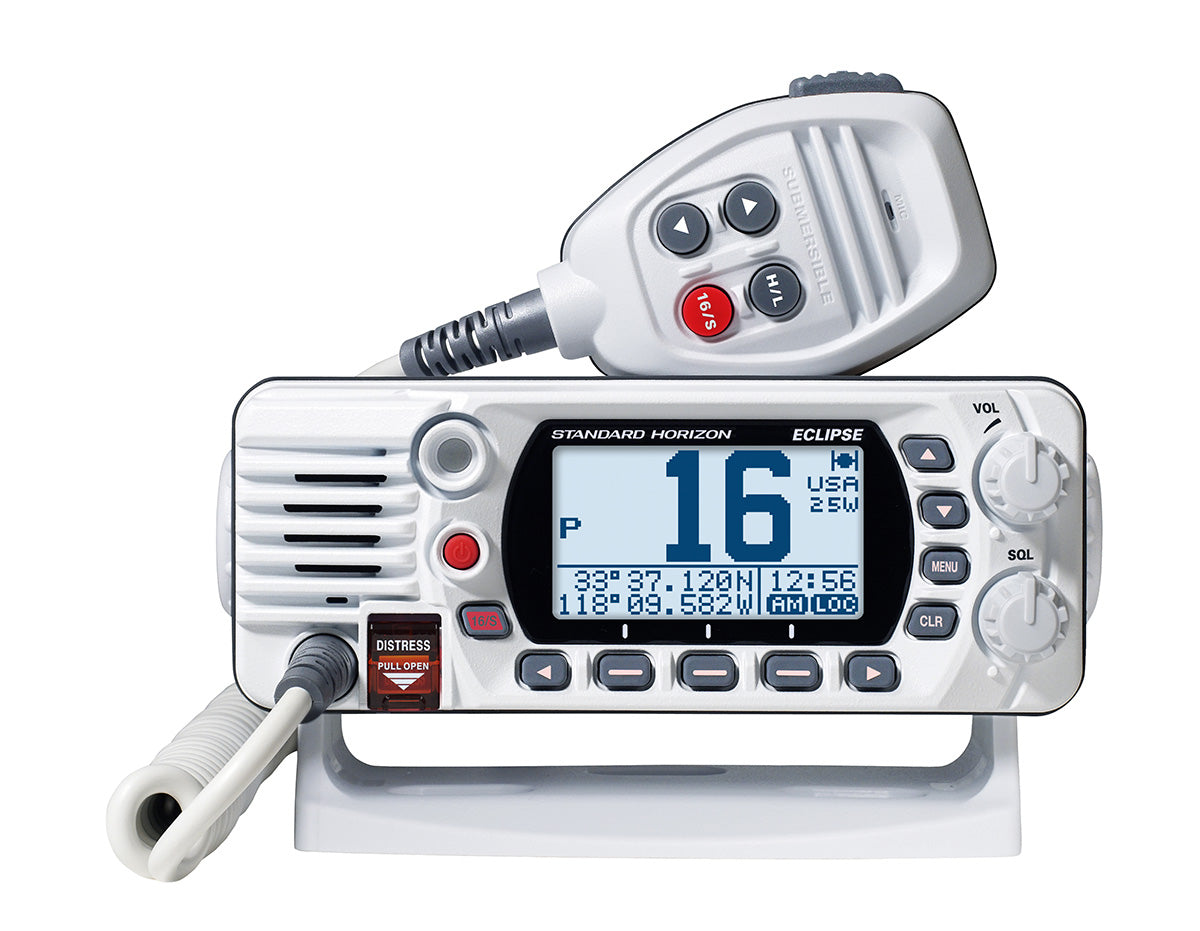

Standard Horizon VHF Radio GX1400GW
Hurry up! Only 10 left in stock
OUT OF STOCK
Restock soon, PREORDER NOW!
HURRY! LET BUY NOW

Hurry up! Only 10 left in stock

Standard Horizon VHF Radio GX1400GW

$219.99
Save $0.00
See All Specs

  • 66 Channel GPS

    Internal 66 channel GPS built into front panel

  • Simple Controls

    Radio controls located right on the microphone

  • Poll GPS Position

    Poll the GPS position of up to 6 ships using DSC

  • Weather Alert

    NOAA weather channel selection
Quantity

A CLOSER LOOK

EXPLORE THE STANDARD HORIZON VHF RADIO GX1400GW

High Resolution Display

The high resolution display makes navigating the radios features smooth and easy.

Programmable Soft Keys

Soft keys that are programmable to make the operation of the radio easier for you.

Easy to Operate Menu System

The easy to operate menu system is more intuitive than ever.

IPX8 Waterproof

Submersible IPX8 waterproof rating of up to 1.5M or 4.92 feet for 30 minutes.

GPS and Time Shown

GPS position and time shown on a nice and clear full-dot matrix display making it easily readable.

Preset Key

Preset key used to recall up to 10 favorite channels making it easy to simply pick up the mic and communicate.

Digital Selective Calling

Allows for DSC calls to be received even when listening to communications making your life simpler.

Key Features

Class D DSC (Digital Selective Calling)

Built-in Class D DSC with a dedicated DSC receiver for distress calls, position requests, and safety communications.
Title

Waterproof Design (IPX8)

Rated IPX8 waterproof, allowing it to be submerged in 1.5 meters of water for up to 30 minutes, ensuring durability in harsh marine environments.
Title

NOAA Weather Channels and Alerts

Pre-programmed with NOAA weather channels for real-time weather updates, with automatic weather alerts to keep you informed of changing conditions.
Title

Compact and Space-Saving Design

Designed for space-saving installations on vessels, making it suitable for boats with limited mounting space while still providing powerful communication features.
Title

25W and 1W Power Output

Offers 25W high power for long-range communication and 1W low power for short-range transmissions, catering to different communication needs.
Title

Large Backlit LCD Display

Features a clear, backlit LCD display that is easy to read in both daylight and low-light conditions, ensuring visibility at all times.
Title

Programmable Scan, Priority Scan, and Dual Watch

Allows users to scan multiple channels, set up a priority scan, or monitor two channels simultaneously with dual watch, providing flexibility in channel monitoring.
Title

NMEA 0183 Interface

Supports NMEA 0183 connectivity, enabling integration with external GPS devices for automatic location transmission during DSC calls.
Title

ITU-R M493-13 DSC Compliance

Meets international standards for marine communication, ensuring compatibility with other DSC-equipped radios worldwide.
Title

Customizable Channel Names

Allows users to customize channel names for easier identification and quick access to commonly used channels.
Title

Emergency Channel 16 Quick Access

Provides a dedicated button for quick access to Channel 16, ensuring that distress communication is always readily available.
Title

Technical Specifications

  • General Specifications

  • Transmitter Specifications

  • Receiver Specifications

General Specifications

Model

Standard Horizon GX1400GW (White)

Type

Fixed-mount VHF marine transceiver

Frequency Range

Transmit: 156.025 MHz to 157.425 MHz (Marine Band)

Receive: 156.050 MHz to 163.275 MHz

Channels

All USA, International, and Canadian marine channels

NOAA weather channels with alerts

Power Supply

13.8V DC ± 15%

Current Drain

Transmit (25W): 5A

Receive (Standby): 0.5A

Operating Temperature Range

-4°F to +140°F (-20°C to +60°C)

Waterproof Rating

IPX8 (submersible in 1.5 meters of water for 30 minutes)

Transmitter Specifications

Power Output

High: 25W

Low: 1W

Modulation

16K0G3E (FM)

Frequency Stability

±10 ppm

Spurious Emissions

Less than 0.25 μW

Receiver Specifications

Sensitivity (12 dB SINAD)

Better than 0.25 μV

Adjacent Channel Selectivity

70 dB

Intermodulation Rejection

70 dB

Audio Output Power

Internal Speaker: 2W @ 4Ω

External Speaker: 4.5W @ 8Ω

Audio Distortion

Less than 10%

FIND YOUR ANSWERS HERE

FREQUENTLY ASKED QUESTIONS

What is the power output of the Standard Horizon GX1400GW?

The GX1400GW provides 25W of high power for long-range communication and a 1W low power setting for short-range use.

Is the Standard Horizon GX1400GW waterproof?

Yes, the GX1400GW is rated IPX8, meaning it can be submersible in up to 1.5 meters of water for 30 minutes, making it ideal for marine use.

Does the GX1400GW have Digital Selective Calling (DSC)?

Yes, it includes Class D DSC, which allows users to send distress calls, position reports, and emergency messages, enhancing safety on the water.

Does the GX1400GW support NOAA weather channels?

Yes, the radio comes pre-programmed with NOAA weather channels and provides automatic weather alerts to keep users informed of changing conditions.

Can the GX1400GW be connected to a GPS?

Yes, it supports NMEA 0183 connectivity, allowing it to connect to an external GPS for automatic transmission of location data during DSC calls.

Is the GX1400GW suitable for small boats?

Yes, its compact design makes it ideal for installation on boats with limited space, offering powerful communication in a space-saving package.

How do I set up the DSC feature on the GX1400GW?

To use the DSC feature, you need to register for an MMSI number with your local maritime authority and input it into the radio. Instructions are provided in the user manual.

What scanning features does the GX1400GW offer?

The radio supports programmable scan, priority scan, and dual watch, allowing users to monitor multiple channels simultaneously.

Does the GX1400GW have a backlit display?

Yes, the GX1400GW features a large backlit LCD display that makes it easy to read in both bright sunlight and low-light conditions.

What is included with the Standard Horizon GX1400GW?

The radio typically includes a mounting bracket, power cable, microphone, and an owner’s manual for easy setup and installation.

How do I customize channel names on the GX1400GW?

The GX1400GW allows users to customize channel names through the settings menu, making it easier to identify frequently used channels.

Can the GX1400GW connect to an external speaker?

Yes, the radio supports an external speaker connection, allowing you to enhance audio output if needed.

Does the GX1400GW have a dedicated distress button?

Yes, it has a dedicated distress button for sending emergency DSC calls on Channel 16, ensuring quick access to emergency communication.

Can I use the GX1400GW internationally?

Yes, the GX1400GW supports USA, International, and Canadian marine channels, making it suitable for use in a variety of regions around the world.
